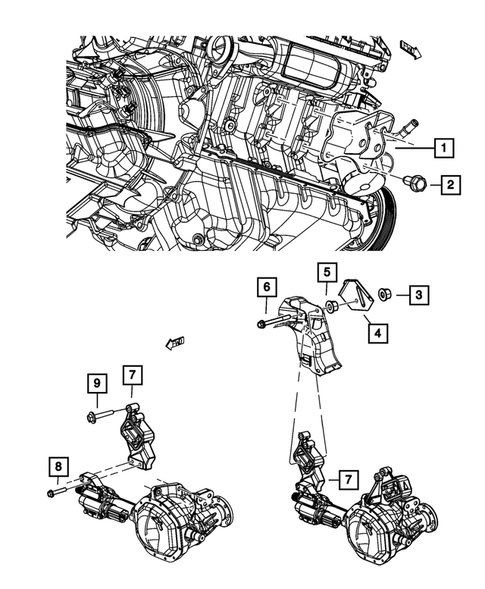

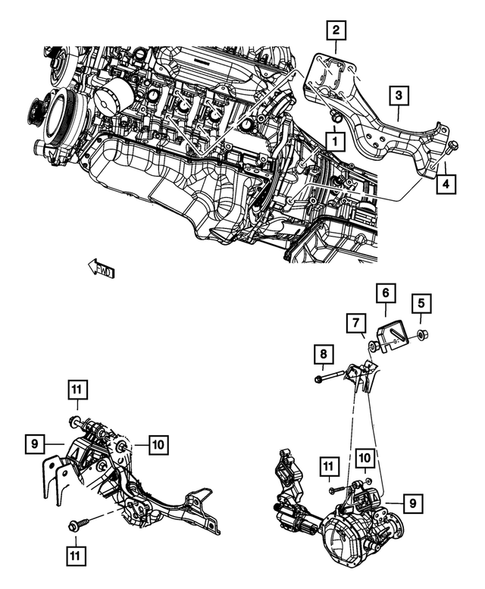

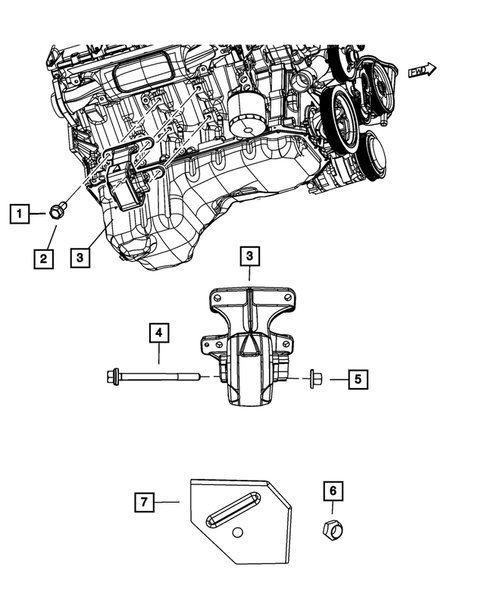

Engine Mounting for 2015 Ram 1500
No.
Part # / Description / Price
Price
1
Hex Head Bolt And Coned Washer, Mounting
Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 5.7L V8 HEMI MDS VVT Engine. Transmissions: 6-SPD AUTOMATIC 65RFE TRANSMISSION. 8-Spd Auto 8HP70 Trans (Buy-US).
Description: Fuel Bundle Bracket to Transmission. Fuel Bundle to Trans Rear. Engine Mount To Cylinder Block. Fuel Bundle Bracket To Engine Stud. Corner Bracket Attaching. Bracket To Cylinder Block. M10X1.50X25.00. [Mega Cab]. Bracket to Engine Block. Adapter Bracket To Engine.
MSRP $5.50
$3.30
MSRP $5.50
$3.30
2

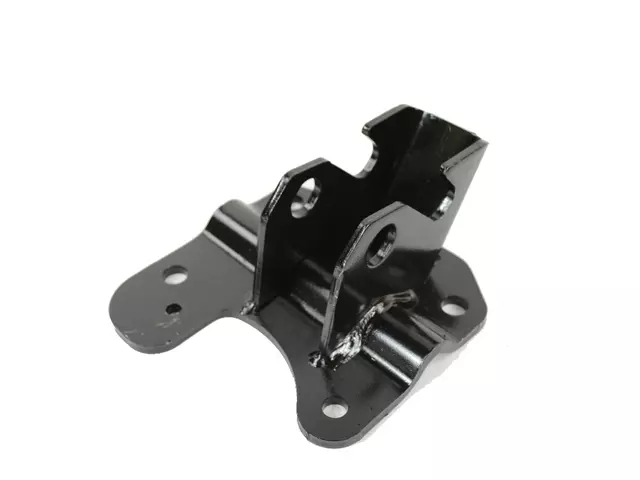

Engine Mount Bracket, Left Side Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VVT Engine.
Description: Front. Engine Mount Bracket To Pinion Nose Bracket.
MSRP $96.65
$63.53
MSRP $96.65
$63.53
2
Engine Mount Bracket, Left Side Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VVT Engine. Transmissions: 8-Spd Auto 8HP70 Trans (Buy-US).
Description: Rear.
MSRP $61.10
$40.04
MSRP $61.10
$40.04
3
Engine Mount Bracket Mopar
Mopar Positions: Left
Notes: Engines: 5.7L V8 HEMI MDS VVT Engine. ALL 4.7L V8 ENGINES. Transmissions: 6-SPD AUTOMATIC 65RFE TRANSMISSION.
Description: Rear. Left Side. Pinion Nose Bracket To Transmission.
MSRP $64.60
$42.35
MSRP $64.60
$42.35
4
Hex Head Bolt And Coned Washer Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.6L V6 FFV 24V VVT Engine. 5.7L V8 HEMI MDS VVT Engine. Transmissions: 6-SPD AUTOMATIC 65RFE TRANSMISSION. 8-Spd Auto 8HP70 Trans (Buy-US). All Automatic Transmissions.
Description: M10x1.5x30.00. Bracket To Transmission. Engine Mount Bracket To Front Axle Housing Pinion Nose.
MSRP $21.60
$13.88
MSRP $21.60
$13.88
5
HEX LOCK - NUT 06101688 Mopar
Mopar Notes: Engines: 3.6L V6 FFV 24V VVT Engine. 5.7L V8 HEMI MDS VVT Engine.
Description: Genuine OEM Mopar parts - HEX LOCK - NUT | Mopar 06101688
MSRP $4.70
$3.03
MSRP $4.70
$3.03
6
Engine Mount Heat Shield, Left Side Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VVT Engine.
Description: ENGINE MOUNT
MSRP $9.20
$6.00
MSRP $9.20
$6.00
7
Hex Flange Lock Nut, Mounting Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.6L V6 FFV 24V VVT Engine. 5.7L V8 HEMI MDS VVT Engine.
Description: M12x1.75. Engine Mount Thru Bolt. Engine Mount Bracket To Frame. Engine Mount Bracket To Engine Mount. Lower Control Crossmember Attaching. Rear Lower Control Arm Crossmember To Frame. With Locking Retainer.
MSRP $27.80
$17.84
MSRP $27.80
$17.84
8
Hex Head Bolt And Coned Washer, Mounting Mopar
Mopar Notes: Engines: 3.6L V6 FFV 24V VVT Engine. 5.7L V8 HEMI MDS VVT Engine.
Description: M12X1.75X145.00. [Mega Cab]. Engine Mount Bracket To Engine Mount. Insulator to Frame. Mount To Frame.
MSRP $16.35
$10.78
MSRP $16.35
$10.78
9
Engine Mount Insulator, Left Side Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VVT Engine.
Description: Left Side.
MSRP $327.00
$213.40
MSRP $327.00
$213.40
11
Hex Head Bolt And Coned Washer, Mounting Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: M12x1.75x80.00. Engine Mount To Cylinder Block. Stabilizer Bar Link to Body. Engine Mount To Engine Mount Bracket. Inboard. Sway Bar Link to Body. HV Battery Front To Vehicle.
MSRP $8.60
$5.56
MSRP $8.60
$5.56
No.
Part # / Description / Price
Price
1
Engine Mount Bracket, Right Side Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VVT Engine.
Description: Right Side.
MSRP $57.15
$37.46
MSRP $57.15
$37.46
2
Hex Head Bolt And Coned Washer, Mounting Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 5.7L V8 HEMI MDS VVT Engine. Transmissions: 6-SPD AUTOMATIC 65RFE TRANSMISSION. 8-Spd Auto 8HP70 Trans (Buy-US).
Description: Fuel Bundle Bracket to Transmission. Fuel Bundle to Trans Rear. Engine Mount To Cylinder Block. Fuel Bundle Bracket To Engine Stud. Corner Bracket Attaching. Bracket To Cylinder Block. M10X1.50X25.00. [Mega Cab]. Bracket to Engine Block. Adapter Bracket To Engine.
MSRP $5.50
$3.30
MSRP $5.50
$3.30
3
HEX LOCK - NUT 06101688 Mopar
Mopar Notes: Engines: 3.6L V6 FFV 24V VVT Engine. 5.7L V8 HEMI MDS VVT Engine.
Description: Genuine OEM Mopar parts - HEX LOCK - NUT | Mopar 06101688
MSRP $4.70
$3.03
MSRP $4.70
$3.03
4
Engine Mount Heat Shield, Right Side Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VVT Engine.
Description: Right Side.
MSRP $9.45
$6.16
MSRP $9.45
$6.16
5
Hex Flange Lock Nut, Mounting Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.6L V6 FFV 24V VVT Engine. 5.7L V8 HEMI MDS VVT Engine.
Description: M12x1.75. Engine Mount Thru Bolt. Engine Mount Bracket To Frame. Engine Mount Bracket To Engine Mount. Lower Control Crossmember Attaching. Rear Lower Control Arm Crossmember To Frame. With Locking Retainer.
MSRP $27.80
$17.84
MSRP $27.80
$17.84
6
Hex Head Bolt And Coned Washer, Mounting Mopar
Mopar Notes: Engines: 3.6L V6 FFV 24V VVT Engine. 5.7L V8 HEMI MDS VVT Engine.
Description: M12X1.75X145.00. [Mega Cab]. Engine Mount Bracket To Engine Mount. Insulator to Frame. Mount To Frame.
MSRP $16.35
$10.78
MSRP $16.35
$10.78
7

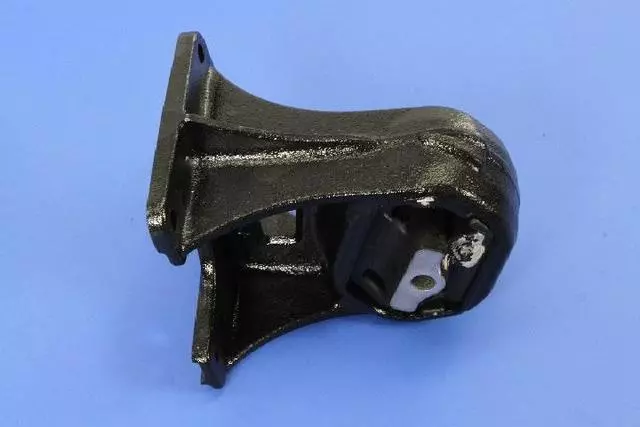

Engine Mount Insulator, Right Side Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VVT Engine.
Description: Right Side.
MSRP $324.00
$211.20
MSRP $324.00
$211.20
8
Hex Flange Head Bolt, Mounting Mopar
Mopar Description: M12x1.75x45.00. Pinion Nose Bracket To Front Axle Housing. Engine Mount Bracket To Front Axle Housing.
MSRP $16.80
$10.92
MSRP $16.80
$10.92
9
Hex Head Bolt And Coned Washer, Mounting Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: M12x1.75x80.00. Engine Mount To Cylinder Block. Stabilizer Bar Link to Body. Engine Mount To Engine Mount Bracket. Inboard. Sway Bar Link to Body. HV Battery Front To Vehicle.
MSRP $8.60
$5.56
MSRP $8.60
$5.56
No.
Part # / Description / Price
Price
1
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 3.6L V6 FFV 24V VVT Engine. 5.7L V8 HEMI MDS VVT Engine. ALL 4.7L V8 ENGINES. Transmissions: 6-SPD AUTOMATIC 65RFE TRANSMISSION. 8-Spd Auto 8HP70 Trans (Buy-US).
Description: Engtine Mount To Cylinder Block. M10X1.50X28.00. [Mega Cab]. M10x1.5x28. Insulator Assy. M10X1.50X28.00. [Quad Cab]. M10X1.50X28.00. [Regular Cab]. Engine Mount Bracket To Block.
MSRP $50.50
$32.50
MSRP $50.50
$32.50
2
Double Ended Stud, Mounting Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VVT Engine. Transmissions: 8-Spd Auto 8HP70 Trans (Buy-US).
Description: M10x1.50/m8x1.25x54.00. Engine Mount Bracket To Cylinder Block. Pinion Nose Bracket To Cylinder Block.
MSRP $4.30
$2.81
MSRP $4.30
$2.81
3
Engine Mount Insulator, Right Side Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VVT Engine.
Description: Right Side.
MSRP $301.00
$195.80
MSRP $301.00
$195.80
4
Hex Head Bolt And Coned Washer, Mounting Mopar
Mopar Notes: Engines: 3.6L V6 FFV 24V VVT Engine. 5.7L V8 HEMI MDS VVT Engine.
Description: M12X1.75X145.00. [Mega Cab]. Engine Mount Bracket To Engine Mount. Insulator to Frame. Mount To Frame.
MSRP $16.35
$10.78
MSRP $16.35
$10.78
5
Hex Flange Lock Nut, Mounting Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.6L V6 FFV 24V VVT Engine. 5.7L V8 HEMI MDS VVT Engine.
Description: M12x1.75. Engine Mount Thru Bolt. Engine Mount Bracket To Frame. Engine Mount Bracket To Engine Mount. Lower Control Crossmember Attaching. Rear Lower Control Arm Crossmember To Frame. With Locking Retainer.
MSRP $27.80
$17.84
MSRP $27.80
$17.84
6
HEX LOCK - NUT 06101688 Mopar
Mopar Notes: Engines: 3.6L V6 FFV 24V VVT Engine. 5.7L V8 HEMI MDS VVT Engine.
Description: Genuine OEM Mopar parts - HEX LOCK - NUT | Mopar 06101688
MSRP $4.70
$3.03
MSRP $4.70
$3.03
7
Engine Mount Heat Shield, Right Side Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VVT Engine.
Description: Right Side.
MSRP $9.45
$6.16
MSRP $9.45
$6.16
No.
Part # / Description / Price
Price
1
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 3.6L V6 FFV 24V VVT Engine. 5.7L V8 HEMI MDS VVT Engine. ALL 4.7L V8 ENGINES. Transmissions: 6-SPD AUTOMATIC 65RFE TRANSMISSION. 8-Spd Auto 8HP70 Trans (Buy-US).
Description: Engtine Mount To Cylinder Block. M10X1.50X28.00. [Mega Cab]. M10x1.5x28. Insulator Assy. M10X1.50X28.00. [Quad Cab]. M10X1.50X28.00. [Regular Cab]. Engine Mount Bracket To Block.
MSRP $50.50
$32.50
MSRP $50.50
$32.50
2
Engine Mount Insulator, Left Side Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VVT Engine.
Description: Left Side.
MSRP $211.00
$136.40
MSRP $211.00
$136.40
3
Hex Flange Lock Nut, Mounting Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.6L V6 FFV 24V VVT Engine. 5.7L V8 HEMI MDS VVT Engine.
Description: M12x1.75. Engine Mount Thru Bolt. Engine Mount Bracket To Frame. Engine Mount Bracket To Engine Mount. Lower Control Crossmember Attaching. Rear Lower Control Arm Crossmember To Frame. With Locking Retainer.
MSRP $27.80
$17.84
MSRP $27.80
$17.84
4
HEX LOCK - NUT 06101688 Mopar
Mopar Notes: Engines: 3.6L V6 FFV 24V VVT Engine. 5.7L V8 HEMI MDS VVT Engine.
Description: Genuine OEM Mopar parts - HEX LOCK - NUT | Mopar 06101688
MSRP $4.70
$3.03
MSRP $4.70
$3.03
5
Engine Mount Heat Shield, Left Side Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VVT Engine.
Description: ENGINE MOUNT
MSRP $9.20
$6.00
MSRP $9.20
$6.00
6
Hex Head Bolt And Coned Washer, Mounting Mopar
Mopar Notes: Engines: 3.6L V6 FFV 24V VVT Engine. 5.7L V8 HEMI MDS VVT Engine.
Description: M12X1.75X145.00. [Mega Cab]. Engine Mount Bracket To Engine Mount. Insulator to Frame. Mount To Frame.
MSRP $16.35
$10.78
MSRP $16.35
$10.78
